Compresor de tornillo - Ingersoll Rand

Solicite un presupuesto

Nosotros: http://cwcompressors.com

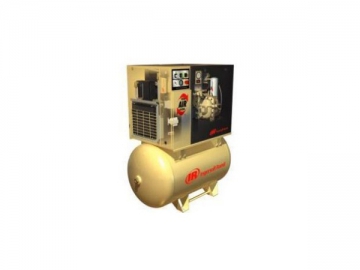

Microcompresor de tornillo Infinity

Tipo	Capacidad(m³/min)	Potencia (kW)	Presión(bar)
R5IU-A7-X	0.83	5.5	7
R5IU-A8-X	0.78	5.5	8
R5IU-A10-X	0.70	5.5	10
R7IU- A7-X	1.10	7.5	7
R7IU- A8-X	1.03	7.5	8
R7IU- A10-X	0.91	7.5	10
R11IU- A7-X	1.63	11.0	7
R11IU- A8-X	1.52	11.0	8
R11IU- A10-X	1.35	11.0	10
R5IU-A7-X272H	0.83	5.5	7
R5IU-A8-X272H	0.78	5.5	8
R5IU-A10-X272H	0.70	5.5	10
R7IU- A7-X272H	1.10	7.5	7
R7IU- A8-X272H	1.03	7.5	8
R7IU- A10-X272H	0.91	7.5	10
R11IU- A7-X272H	1.63	11.0	7
R11IU- A8-X272H	1.52	11.0	8
R11IU- A10-X272H	1.35	11.0	10

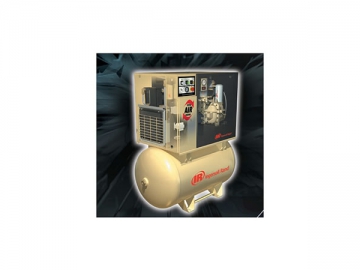

Small Up TAS (50 HZ)

Tipo	Capacidad (m³/min)	Potencia (kW)	Presión
Tipo	Capacidad (m³/min)	Potencia (kW)	min (bar)	máx. (bar)
UP5-4TAS-8	0.55	4	4.5	8
UP5-4TAS-10	0.45	4	4.5	10
UP5-5TAS-8	0.82	5.5	4.5	8
UP5-5TAS-10	0.74	5.5	4.5	10
UP5-5TAS-14	0.51	5.5	4.5	14.5
UP5-7TAS-8	1.08	7.5	4.5	8
UP5-7TAS-10	0.96	7.5	4.5	10
UP5-7TAS-14	0.68	7.5	4.5	14.5
UP5-11CTAS-8	1.60	11	4.5	8
UP5-11CTAS-10	1.42	11	4.5	10
UP5-11CTAS-14	1.08	11	4.5	14.5
UP5-4TAS-8-272	0.55	4	4.5	8
UP5-4TAS-10-272	0.45	4	4.5	10
UP5-5TAS-8-272	0.82	5.5	4.5	8
UP5-5TAS-10-272	0.74	5.5	4.5	10
UP5-5TAS-14-272	0.51	5.5	4.5	14.5
UP5-7TAS-8-272	1.08	7.5	4.5	8
UP5-7TAS-10-272	0.96	7.5	4.5	10
UP5-7TAS-14-272	0.68	7.5	4.5	14.5
UP5-11TAS-8-272	1.60	11	4.5	8
UP5-11TAS-10-272	1.42	11	4.5	10
UP5-11TAS-14-272	1.08	11	4.5	14.5

Small Up

Tipo	Capacidad	Potencia	Presión
UP5-15-7	2.5	15	7
UP5-15-8	2.4	15	8
UP5-15-10	2.07	15	10
UP5-15-14	1.61	15	14
UP5-18-7	3.10	18.5	7
UP5-18-8	3.00	18.5	8
UP5-18-10	2.61	18.5	10
UP5-18-14	2.01	18.5	14
UP5-22-7	3.70	22	7
UP5-22-8	3.50	22	8
UP5-22-10	3.11	22	10
UP5-22-14	2.32	22	14

Pegasus 1-TAS

Tipo	Capacidad	Potencia	Presión
UP5-15TAS-7	2.5	15	7
UP5-15 TAS -8	2.4	15	8
UP5-15 TAS -10	2.07	15	10
UP5-15 TAS -14	1.61	15	14
UP5-18 TAS -7	3.10	18.5	7
UP5-18 TAS -8	3.00	18.5	8
UP5-18 TAS -10	2.61	18.5	10
UP5-18 TAS -14	2.01	18.5	14
UP5-22 TAS -7	3.70	22	7
UP5-22 TAS -8	3.50	22	8
UP5-22 TAS -10	3.11	22	10
UP5-22 TAS -14	2.32	22	14

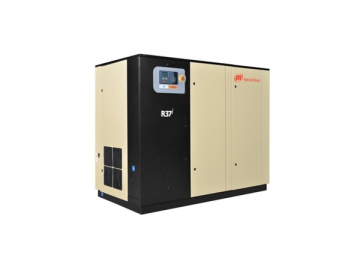

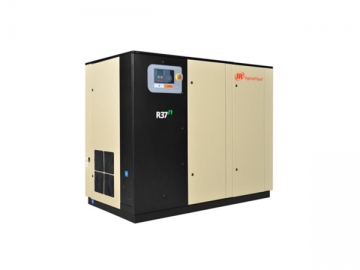

R30-37KW-FS

Tipo	Capacidad	Presión
R30 Ⅰ -A 7.5	5.4	7
R30 Ⅰ -A 8.5	5.2	8
R30 Ⅰ -A 10	4.8	9.5
R30 Ⅰ -A 14	3.9	13.5
R37 Ⅰ -A 7.5	6.3	7
R37 Ⅰ -A 8.5	6.1	8
R37 Ⅰ -A 10	5.7	9.5
R37 Ⅰ -A 14	4.7	13.5
R30 Ⅰ -A 7 TAS	5.4	7
R30 Ⅰ -A 8 TAS	5.2	8
R30 Ⅰ -A 9.5 TAS	4.8	9.5
R30 Ⅰ -A 13.5 TAS	3.9	13.5
R37 Ⅰ -A 7 TAS	6.3	7
R37 Ⅰ -A 8 TAS	6.1	8
R37 Ⅰ -A 9.5 TAS	5.7	9.5
R37 Ⅰ -A 13.5 TAS	5.7	13.5

R30-37KW-VS

Tipo	Capacidad	Presión
R30N-A	1.9-5.5	7
R30N-A	1.9-5.4	7.5
R30N-A	1.9-5.4	8
R30N-A	1.8-5.2	8.5
R30N-A	1.8-4.8	9.5
R30N-A	1.8-4.7	10
R37N-A	2.4-6.6	7
R37N-A	2.3-6.4	7.5
R37N-A	2.3-6.4	8
R37N-A	2.3-6.2	8.5
R37N-A	2.3-5.9	9.5
R37N-A	2.3-5.7	10
R30N-A TAS	1.9-5.4	7
R30N-A TAS	1.9-5.4	7.5
R30N-A TAS	1.9-5.3	8
R30N-A TAS	1.8-5.1	8.5
R30N-A TAS	1.8-4.8	9.5
R37N-A TAS	2.4-6.5	7
R37N-A TAS	2.3-6.4	7.5
R37N-A TAS	2.3-6.3	8
R37N-A TAS	2.3-6.1	8.5
R37N-A TAS	2.3-5.8	9.5

45-75KW Micro compresor de aire

45-75KW Micro compresor de aire con aceite

Tipo	Capacidad	Presión
ML45	7.4	7.5
MM45	7.1	8.5
MH45	6.5	10
ML55	10.1	7.5
MM55	9.1	8.5
MH55	8.3	10
MJ55	7.6	11.4
ML75	13	7.5
MM75	12.1	8.5
MH75	11	10
MJ75	10.2	11.4

R55-75KW-FS

Tipo	Capacidad	Presión
R55I-A7.5	10.19	7.5
R55I-A8.5	9.43	8.5
R55I-A10	8.58	10
R55I-A14	6.51	14
R55I-W7.5	10.19	7.5
R55I-W8.5	9.43	8.5
R55I-W10	8.58	10
R55I-W14	6.51	14
R75I-A7.5	13.34	7.5
R75I-A8.5	12.77	8.5
R75I-A10	11.61	10
R75I-A14	8.83	14
R75I-W7.5	13.34	7.5
R75I-W8.5	12.77	8.5
R75I-W10	11.61	10
R75I-W14	8.83	14

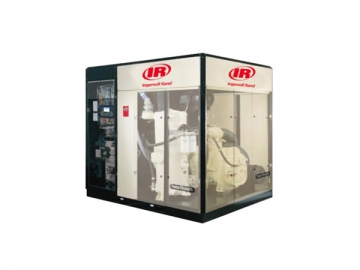

NIRVANA 37-45 KW

Tipo	Capacidad	Presión
IRN37K-CC	1.8-6.6	7.0
IRN37K-CC	1.8-6.4	7.5
IRN37K-CC	1.8-6.3	8.0
IRN37K-CC	1.9-6.2	8.5
IRN37K-CC	1.9-5.7	10.0
IRN45K-CC	1.9-7.4	7.0
IRN45K-CC	1.9-7.4	7.5
IRN45K-CC	1.9-7.2	8.0
IRN45K-CC	1.9-7.1	8.5
IRN45K-CC	1.9-6.5	10.0

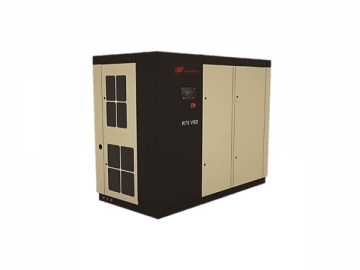

R55-75KW VSD

Tipo	Capacidad	Presión
R55VSD	3.10-10.19	7
R55VSD	3.06-9.95	7.5
R55VSD	3.04-9.43	8
R55VSD	2.95-9.10	8.5
R55VSD	2.83-8.58	9.5
R55VSD	2.80-8.18	10
R75VSD	4.30-13.56	7
R75VSD	4.28-13.15	7.5
R75VSD	4.25-12.77	8
R75VSD	4.20-12.25	8.5
R75VSD	4.17-11.61	9.5
R75VSD	4.05-11.15	10

R55-75KW-VS

R55-75KW VSD

Tipo	Capacidad	Presión
R55VSD	3.10-10.19	7
R55VSD	3.06-9.95	7.5
R55VSD	3.04-9.43	8
R55VSD	2.95-9.10	8.5
R55VSD	2.83-8.58	9.5
R55VSD	2.80-8.18	10
R75VSD	4.30-13.56	7
R75VSD	4.28-13.15	7.5
R75VSD	4.25-12.77	8
R75VSD	4.20-12.25	8.5
R75VSD	4.17-11.61	9.5
R75VSD	4.05-11.15	10

M90-160 KW

Tipo	Capacidad	Presión
M90-A7	17.1	7.5
M90-A8	15.6	8.5
M90-A10	14.0	10.0
M90-A7	17.1	7.5
M90-A8	15.6	8.5
M90-A10	14.0	10.0
M110-A7	20.5	7.5
M110-A8	19.6	8.5
M110-A10	17.5	10.0
M110-A7	20.5	7.5
M110-A8	19.6	8.5
M110-A10	17.5	10.0
M132-A7	24.1	7.5
M132-A8	22.8	8.5
M132-A10	21.0	10.0
M132-A7	24.1	7.5
M132-A8	22.8	8.5
M132-A10	21.0	10.0
M160-A7	29.2	7.5
M160-A8	27.6	8.5
M160-A10	25.0	10.0
M160-A7	29.2	7.5
M160-A8	27.6	8.5
M160-A10	25.0	10.0

R90-160KW-FS

Tipo	Capacidad	Presión
R90I-A7.5	16.71	7.5
R90I-A8.5	15.72	8.5
R90I-A10	14.02	10
R90I-A14	10.25	14
R90I-W7.5	16.71	7.5
R90I-W8.5	15.72	8.5
R90I-W10	14.02	10
R90I-W14	10.25	14
R110I-A7.5	20.76	7.5
R110I-A8.5	19.2	8.5
R110I-A10	17.5	10
R110I-A14	13.76	14
R110I-W7.5	20.76	7.5
R110I-W8.5	19.2	8.5
R110I-W10	17.5	10
R110I-W14	13.76	14
R132I-A7.5	25.2	7.5
R132I-A8.5	23.93	8.5
R132I-A10	21.1	10
R132I-A14	17.53	14
R132I-W7.5	25.2	7.5
R132I-W8.5	23.93	8.5
R132I-W10	21.1	10
R132I-W14	17.53	14
R160I-A7.5	29.45	7.5
R160I-A8.5	29.02	8.5
R160I-A10	25.75	10
R160I-A14	20.51	14
R160I-W7.5	29.45	7.5
R160I-W8.5	29.02	8.5
R160I-W10	25.75	10
R160I-W14	20.51	14

185kw

Tipo	Capacidad	Presión
ML185	32.0	7.5
MM185	30.0	8.5
MH185	27.5	10

Etapa doble de inyección de aceite

Tipo	Capacidad	Presión
R90IE-A7.5	18.01	7.5
R90IE-A8.5	17.5	8.5
R90IE-A10	15.43	10
R90IE-A14	13.03	14
R90IE-W7.5	18.01	7.5
R90IE-W8.5	17.5	8.5
R90IE-W10	15.43	10
R90IE-W14	13.03	14
R110IE-A7.5	22.09	7.5
R110IE-A8.5	20.39	8.5
R110IE-A10	18.89	10
R110IE-A14	15.4	14
R110IE-W7.5	22.09	7.5
R110IE-W8.5	20.39	8.5
R110IE-W10	18.89	10
R110IE-W14	15.4	14
R132IE-A7.5	26.19	7.5
R132IE-A8.5	25.34	8.5
R132IE-A10	22.79	10
R132IE-A14	18.35	14
R132IE-W7.5	26.19	7.5
R132IE-W8.5	25.34	8.5
R132IE-W10	22.79	10
R132IE-W14	18.35	14
R160IE-A7.5	31.09	7.5
R160IE-A8.5	30.3	8.5
R160IE-A10	27.21	10
R160IE-A14	21.95	14
R160IE-W7.5	31.09	7.5
R160IE-W8.5	30.3	8.5
R160IE-W10	27.21	10
R160IE-W14	21.95	14

M90-160 VSD

Tipo	Capacidad	Presión
M90VSD-A7	5.5-17.1	7
M90VSD-A8	5.7-15.6	8
M90VSD-A10	5.6-14	10
M90VSD-W7	5.5-17.1	7
M90VSD-W8	5.7-15.6	8
M90VSD-W10	5.6-14	10
M110VSD-A7	7.1-20.5	7
M110VSD-A8	7.13-19.6	8
M110VSD-A10	7-17.5	10
M110VSD-W7	7.1-20.5	7
M110VSD-W8	7.13-19.6	8
M110VSD-W10	7-17.5	10
M132VSD-A7	8.3-24.1	7
M132VSD-A8	8.29-22.8	8
M132VSD-A10	8.4-21	10
M132VSD-W7	8.3-24.1	7
M132VSD-W8	8.29-22.8	8
M132VSD-W10	8.4-21	10
M160VSD-A7	10.1-29.2	7
M160VSD-A8	9.9-27.6	8
M160VSD-A10	10-25	10
M160VSD-W7	10.1-29.2	7
M160VSD-W8	9.9-27.6	8
M160VSD-W10	10-25	10

R90-160KW-VS

Tipo	Capacidad	Presión
R90N-A
R90N-W	17.95	7
R90N-W	17.1	7.5
R90N-W	16.51	8
R90N-W	15.29	8.5
R90N-W	14.67	9.5
R90N-W	14.02	10
R110N-A
R110N-W	21.66	7
R110N-W	20.56	7.5
R110N-W	19.93	8
R110N-W	19..2	8.5
R110N-W	18.35	9.5
R110N-W	17.5	10
R132N-A
R132N-W	24.44	7
R132N-W	23.5	7.5
R132N-W	23.11	8
R132N-W	22.31	8.5
R132N-W	21.69	9.5
R132N-W	21.01	10
R160N-A
R160N-W	28.88	7
R160N-W	28.01	7.5
R160N-W	27.35	8
R160N-W	25.99	8.5
R160N-W	25.51	9.5
R160N-W	25	10

R90-160KW-2S VS

Tipo	Capacidad	Presión
R90NE-A10
R90NE-W10	18.72	7
R90NE-W10	18.01	7.5
R90NE-W10	17.78	8
R90NE-W10	17.5	8.5
R90NE-W10	16.48	9.5
R90NE-W10	15.4	10
R110NE-A10
R110NE-W10	22.96	7
R110NE-W10	22.09	7.5
R110NE-W10	21.52	8
R110NE-W10	20.39	8.5
R110NE-W10	19.65	9.5
R110NE-W10	18.89	10
R132NE-A10
R132NE-W10	27.24	7
R132NE-W10	26.19	7.5
R132NE-W10	25.54	8
R132NE-W10	24.21	8.5
R132NE-W10	23.67	9.5
R132NE-W10	23.11	10
R160NE-A10
R160NE-W10	32.05	7
R160NE-W10	31.09	7.5
R160NE-W10	30.61	8
R160NE-W10	29.59	8.5
R160NE-W10	28.4	9.5
R160NE-W10	27.21	10

200-250kw

TIPO	Capacidad	Presión	Voltaje
ML200	34.3	7.5	380
MM200	32.9	8.5	380
MH200	30.2	10	380
ML200	34.3	7.5	380
MM200	32.9	8.5	380
MH200	30.2	10	380
ML200	34.3	7.5	6000
MM200	32.9	8.5	6000
MH200	30.2	10	6000
ML200	34.3	7.5	6000
MM200	32.9	8.5	6000
MH200	30.2	10	6000
ML200	34.3	7.5	10000
MM200	32.9	8.5	10000
MH200	30.2	10	10000
ML200	34.3	7.5	10000
MM200	32.9	8.5	10000
MH200	30.2	10	10000
ML250	44.6	7	380
MM250	43.2	8	380
MH250	38.8	10	380
ML250	44.6	7	380
MM250	43.2	8	380
MH250	38.8	10	380
ML250	44.6	7	6000
MM250	43.2	8	6000
MH250	38.8	10	6000
ML250	44.6	7	6000
MM250	43.2	8	6000
MH250	38.8	10	6000
ML250	44.6	7	10000
MM250	43.2	8	10000
MH250	38.8	10	10000
ML250	44.6	7	10000
MM250	43.2	8	10000
MH250	38.8	10	10000

300-350kw-ss

Tipo	Capacidad	Presión	Voltaje
ML300-SS	53.2	7.5	380
MM300-SS	49.9	8.5	380
MH300-SS	46.7	10	380
ML300-SS	53.2	7.5	6000
MM300-SS	49.9	8.5	6000
MH300-SS	46.7	10	6000
ML300-SS	53.2	7.5	10000
MM300-SS	49.9	8.5	10000
MH300-SS	46.7	10	10000
ML350-SS	60.7	7.5	380
MM350-SS	56.9	8.5	380
MH350-SS	53.2	10	380
ML350-SS	60.7	7.5	6000
MM350-SS	56.9	8.5	6000
MH350-SS	53.2	10	6000
ML350-SS	60.7	7.5	10000
MM350-SS	56.9	8.5	10000
MH350-SS	53.2	10	10000

200-250kw-2S
